Enhanced Client Custom Actions

A folio of the realm

This is a walkthrough for creating custom actions in the Ultima Online Enhanced Client.

For this mod we will add an art file and make four edits in three data files, which combined will add an "Exit" button to the EC crafting actions, allowing us to exit the crafting menu via keystroke or macro.

Read here for a walkthrough on setting up Mod directory structure.

To begin creating this mod we will setup our directory structure as follows, by creating folders and copying files from the Default folder. We will add Exit.dds to the Actions folder in the next step.

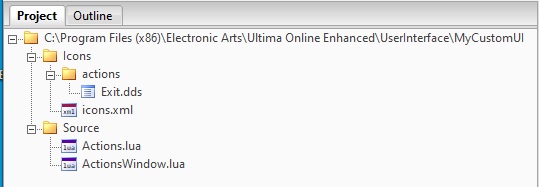

Custom Action Directory Structure

Next, we will need new art for the Exit button, such as this .png

Once downloaded, GIMP's "Export As" feature can be used to convert Exit.png to Exit.dds, the format required by the EC. Place Exit.dds into MyCustomUI>Icons>Actions. At this point, the file structure should look exactly as it does in the directory structure picture above.

Now we will begin editing files to create the functionality for the Exit button. First let's tell the client we have new art by editing Icons.xml. We will add the code

<Icon id="876007" texture="Icons/actions/exit.dds" name="Exit" />

to the "Crafting Utilities" block of the file, after the line for the Make Last button.

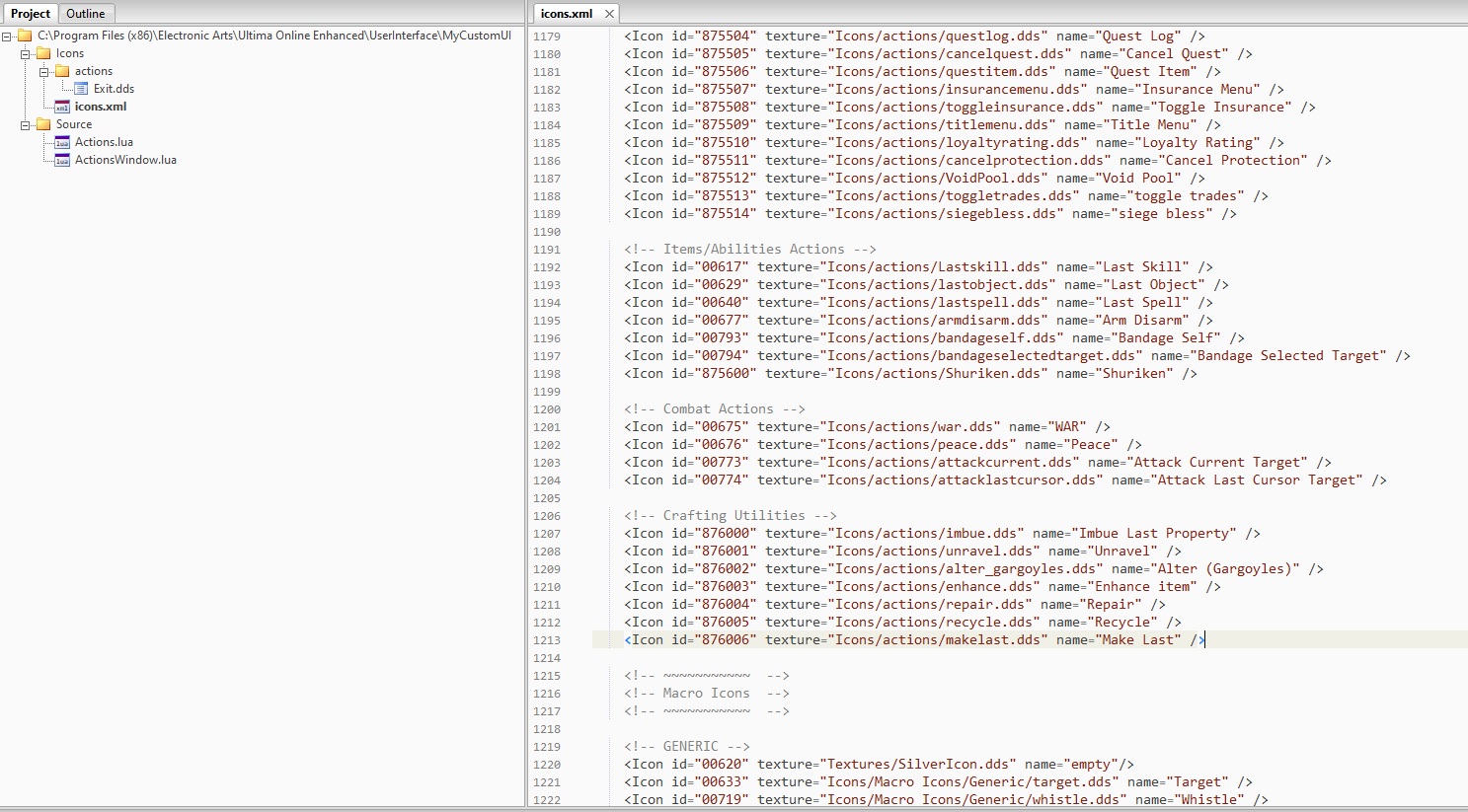

Icons.xml default

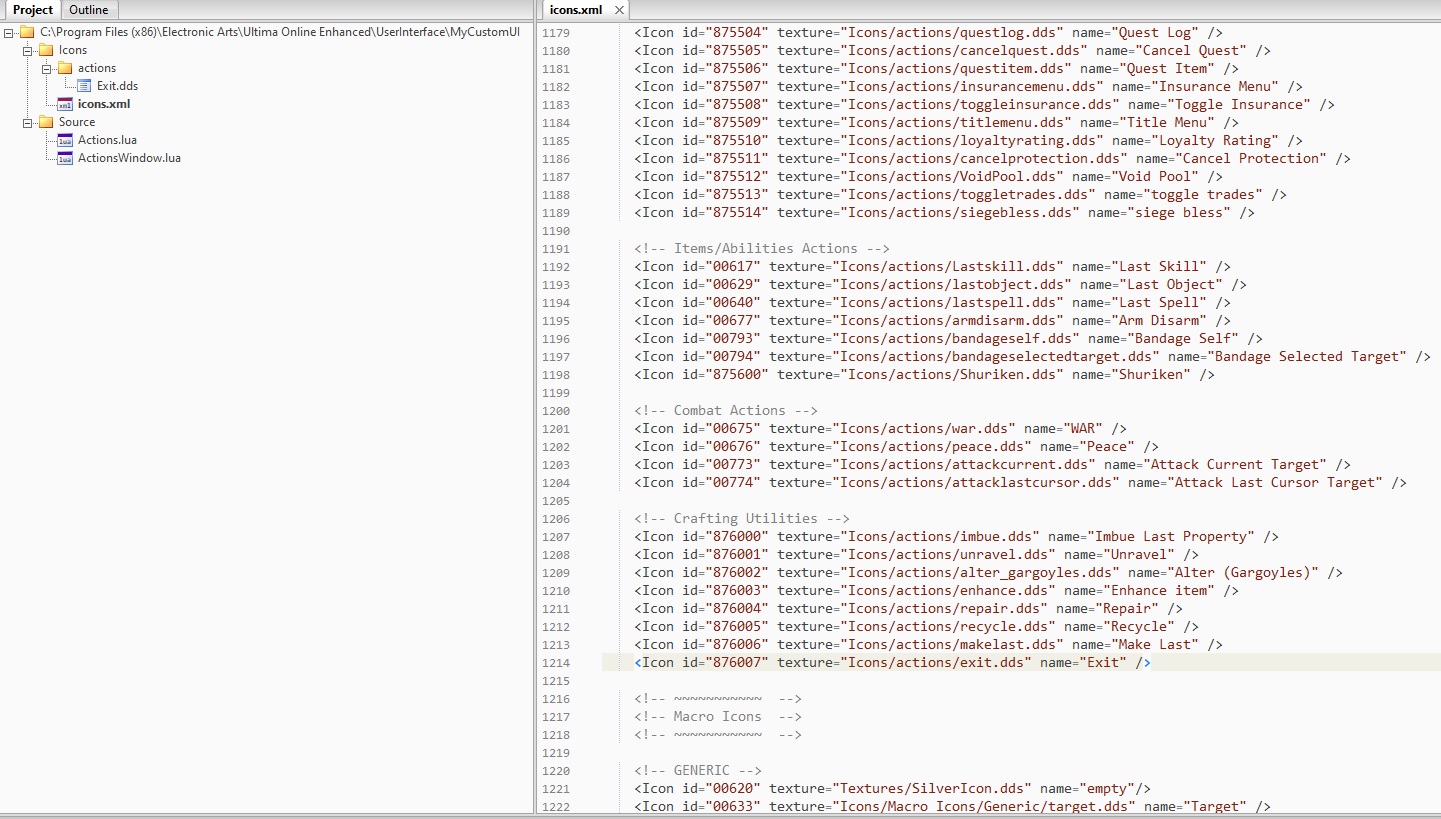

Icons.xml modded

We will now make two edits to ActionsWindow.lua, to call our new icon into the Actions menu. The first will be to function ActionsWindow.InitActionData(), ActionsWindow.ActionData section, Crafting Utilities sub-section, just after the instructions for Make Last. In this location, add the code

ActionsWindow.ActionData[6007] = { type=SystemData.UserAction.TYPE_SPEECH_USER_COMMAND, inActionWindow=true, iconId=876007, detailString=L"Close the crafting menu.", nameString=L"Exit", callback=L"script Actions.Exit()" }

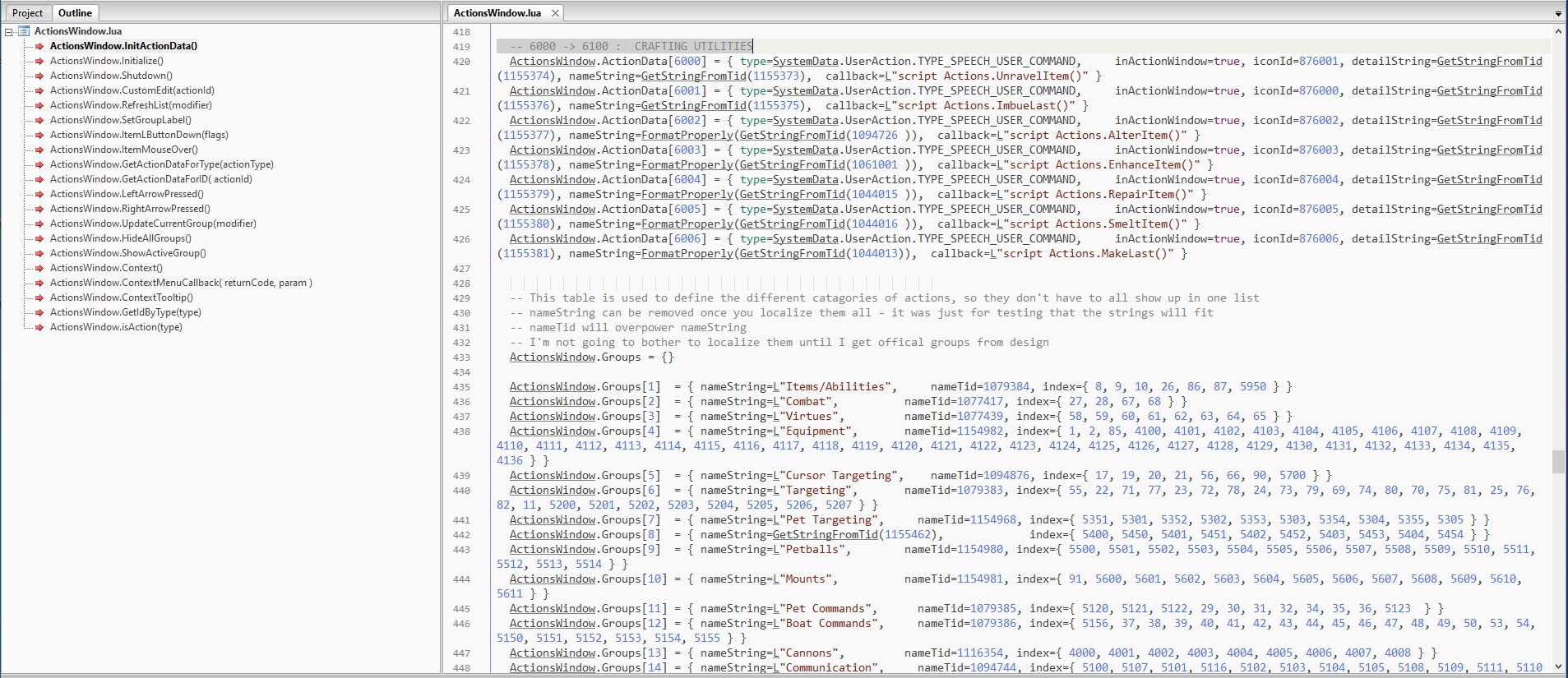

ActionData Default

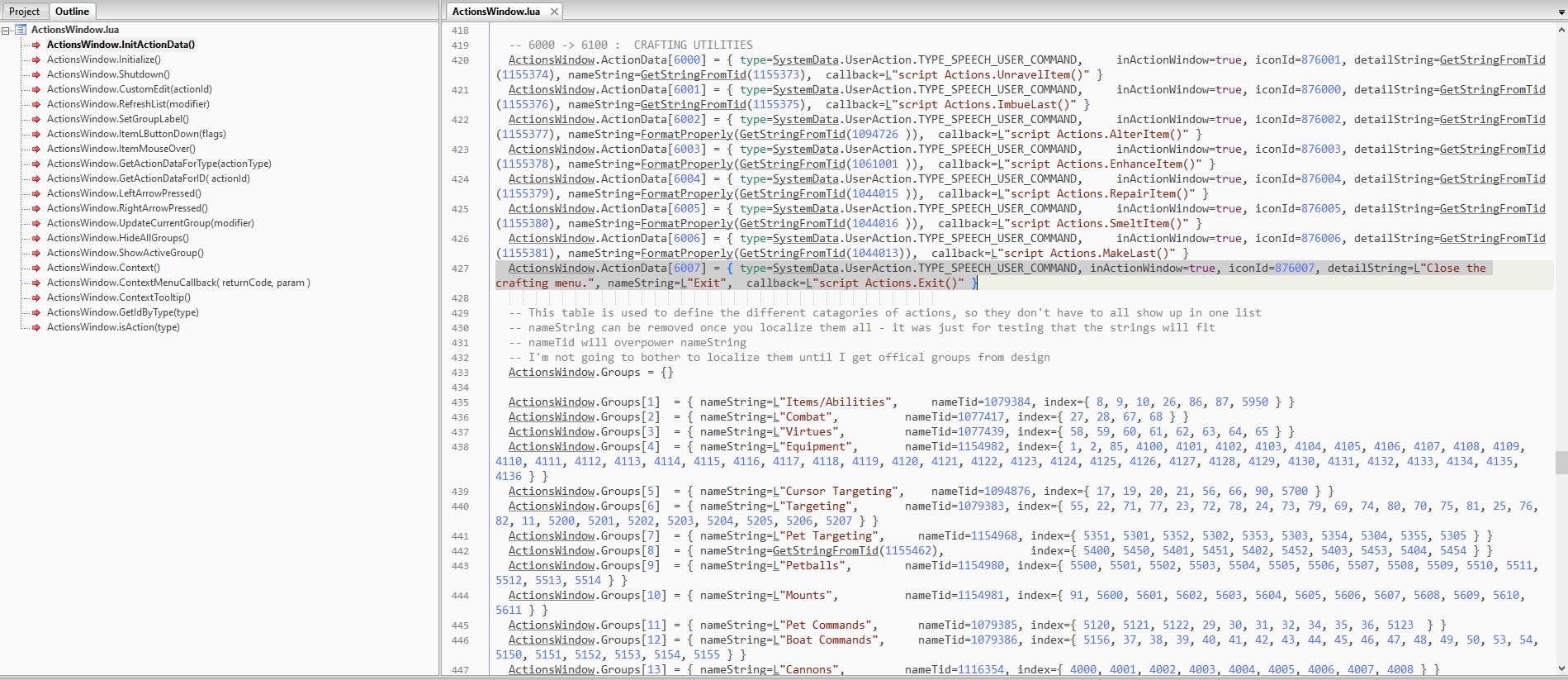

ActionData Modded

The second edit to ActionsWindow.lua will also be to function ActionsWindow.InitActionData(), this time to the .Groups[23] section. Here we will add ", 6007" to the end of the list. You must remember the comma to separate 6006, 6007. The entire line of code will look like this before modding

ActionsWindow.Groups[23] = { nameString=GetStringFromTid(1155372), index={ 6000, 6001, 6002, 6003, 6004, 6005, 6006} }

and like this after modding

ActionsWindow.Groups[23] = { nameString=GetStringFromTid(1155372), index={ 6000, 6001, 6002, 6003, 6004, 6005, 6006, 6007 } }

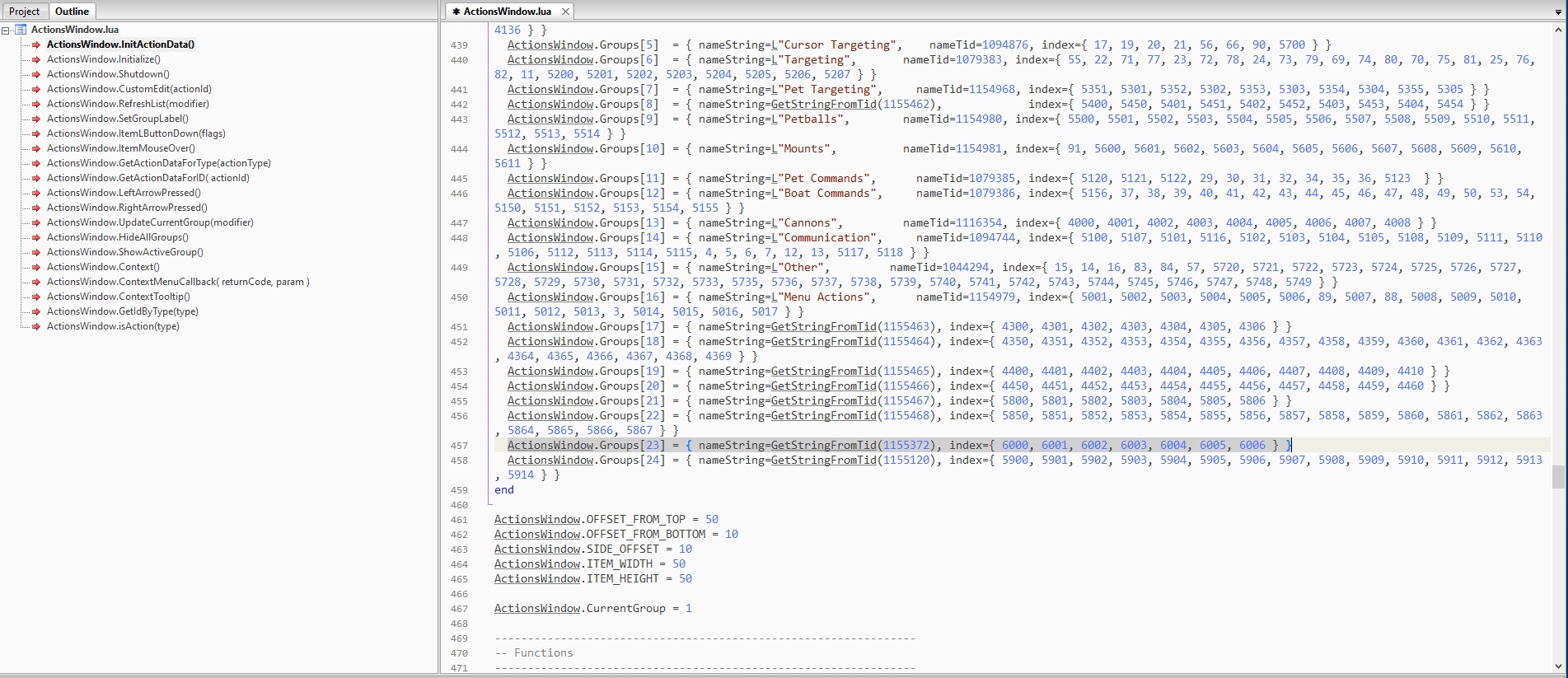

Groups Default
Groups Modded

We will make our fourth and final code edit to the file Actions.lua. This will install the functionality so that the Exit button will know what to do when we click on it. At the end of Actions.lua, after the function for Make Last, add the following code

function Actions.Exit()
 local gumpID = 460
  if GumpData.Gumps[gumpID].windowName and DoesWindowNameExist(GumpData.Gumps[gumpID].windowName) then
   local windowName = GumpData.Gumps[gumpID].windowName
   DestroyWindow(GumpData.Gumps[gumpID].windowName)
   GumpsParsing.ParsedGumps[gumpID] = nil
   GumpsParsing.ToShow[gumpID] = nil
   GenericGump.GumpsList[windowName] = nil
  else
   GumpsParsing.ParsedGumps[gumpID] = nil
   GumpsParsing.ToShow[gumpID] = nil
   GenericGump.GumpsList[windowName] = nil
  end
end

Actions Default

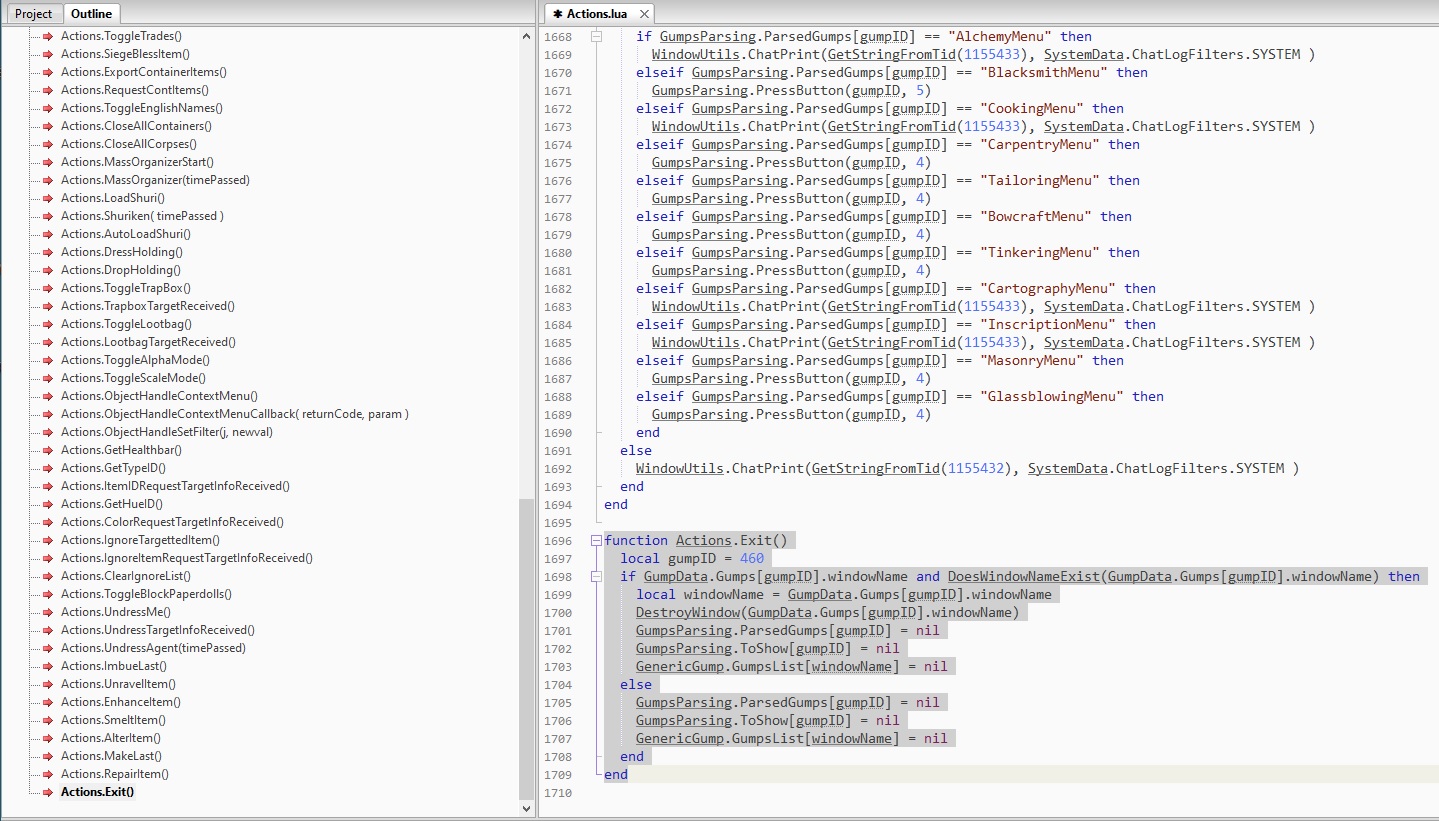

Actions Modded

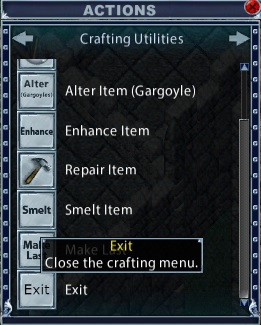

That's it. We are finished with editing. Remember to save your file(s) and select MyCustomUI at login. Once in game, open Menu>Actions and the new Exit button will be available for use, just as any other button.

If you would like to add the Exit button to your available macro icons, read here.

With this information you should now be able to create all kinds of Actions and organize them as you see fit.

Enjoy!
